NOT SOLD (BIDDING OVER)
0.00CAD+ applicable fees & taxes.
This item WAS NOT SOLD. Auction date was 2022 Jul 26 @ 11:00UTC-7 : PDT/MST

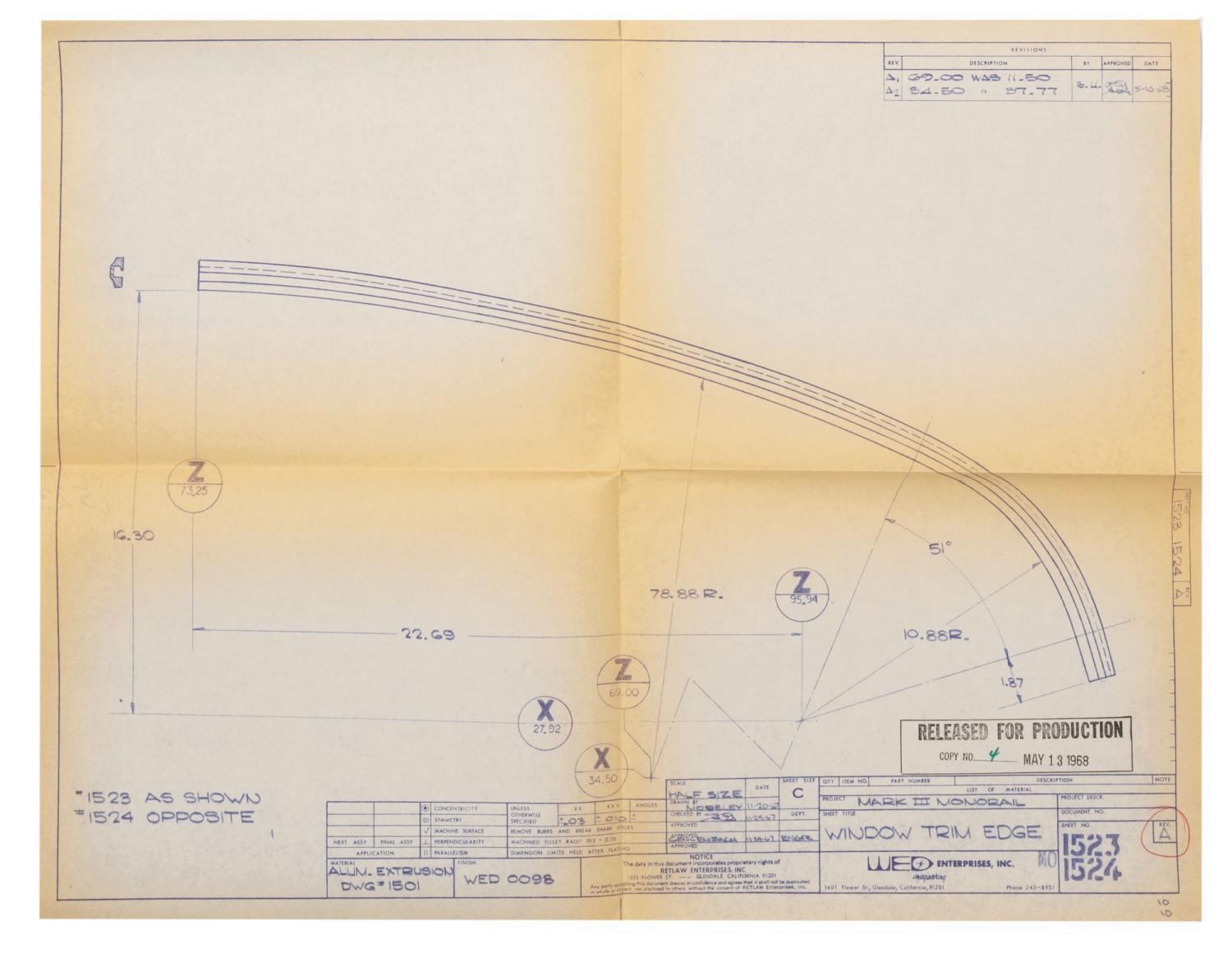

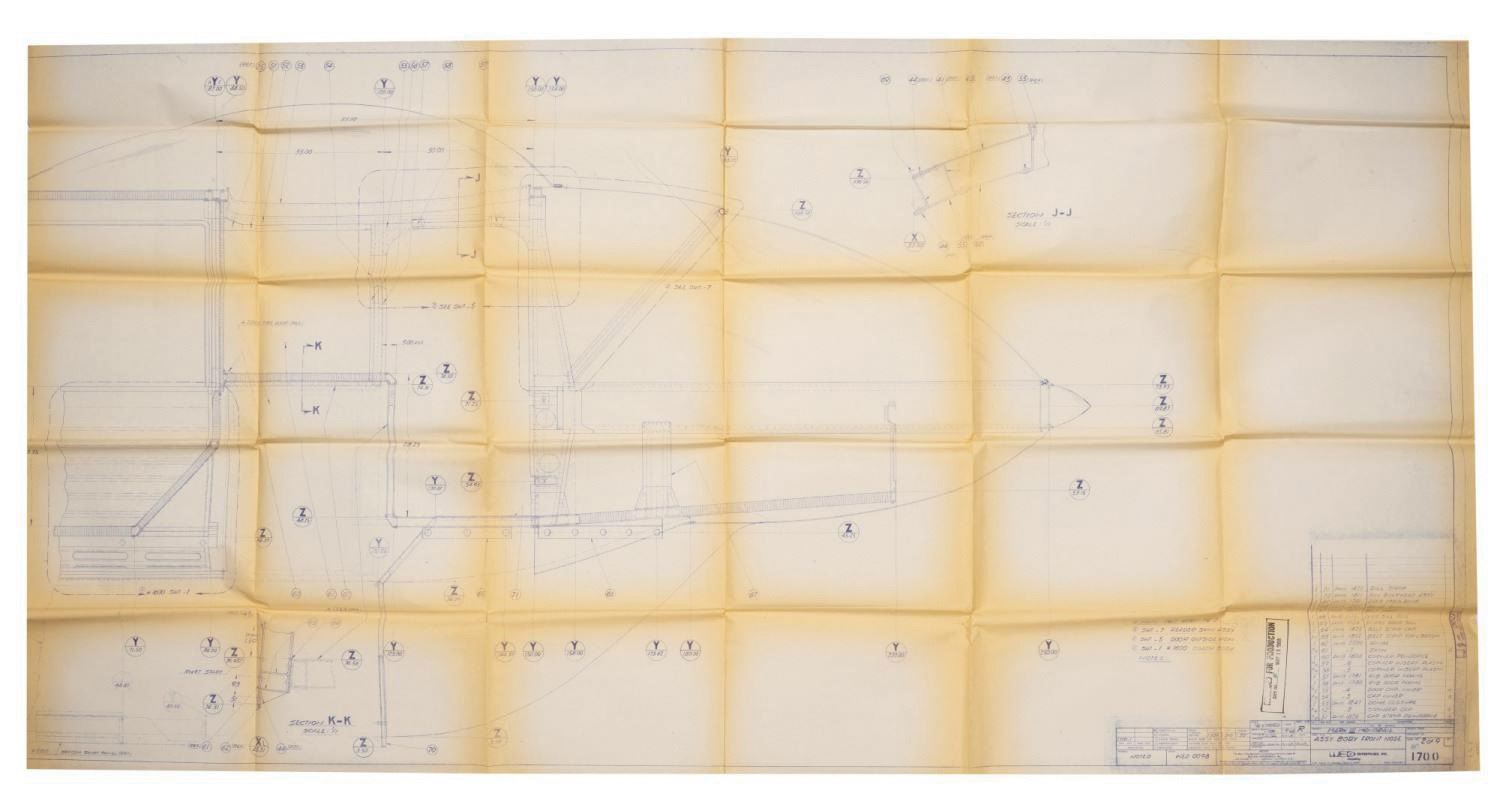

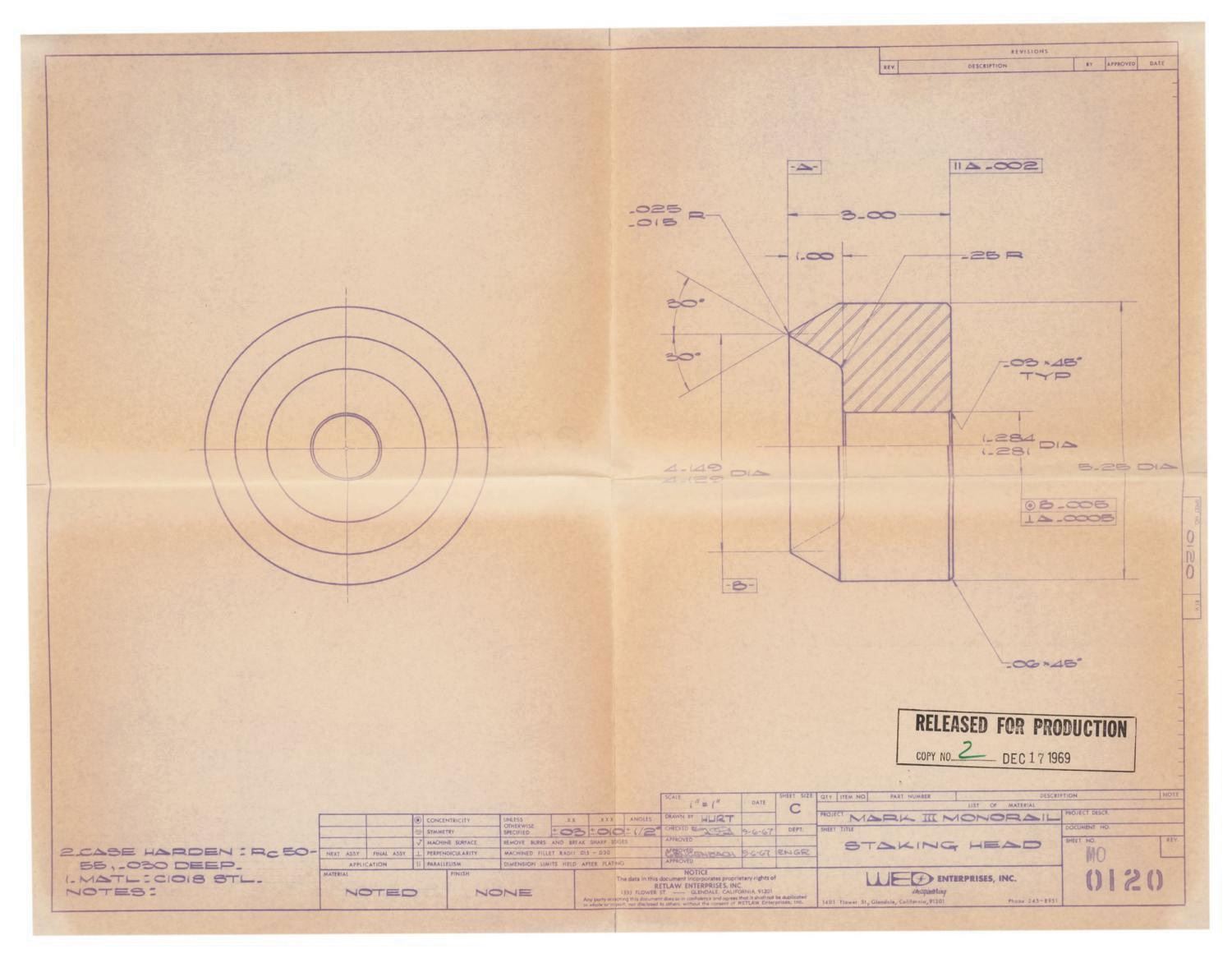

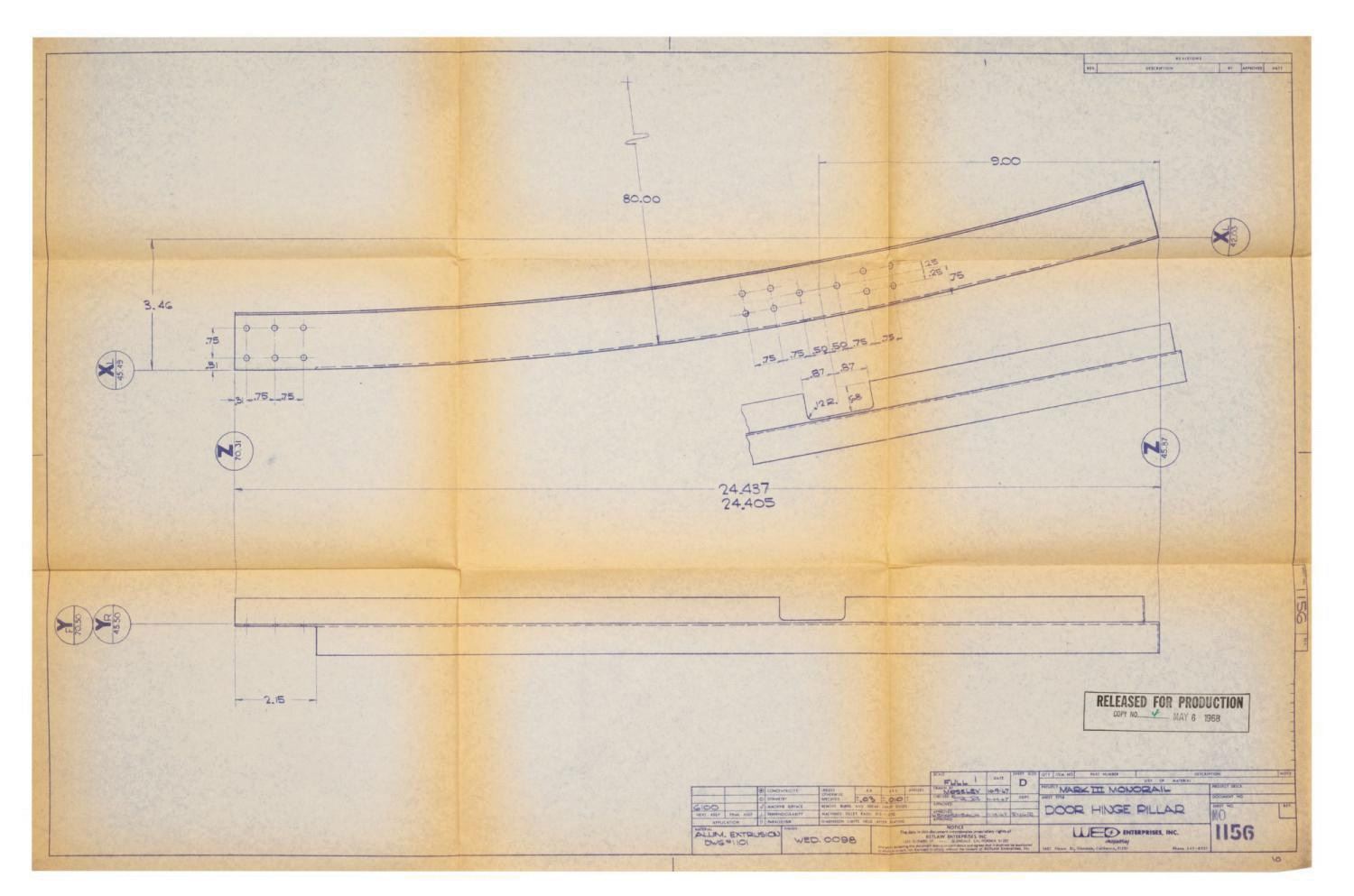

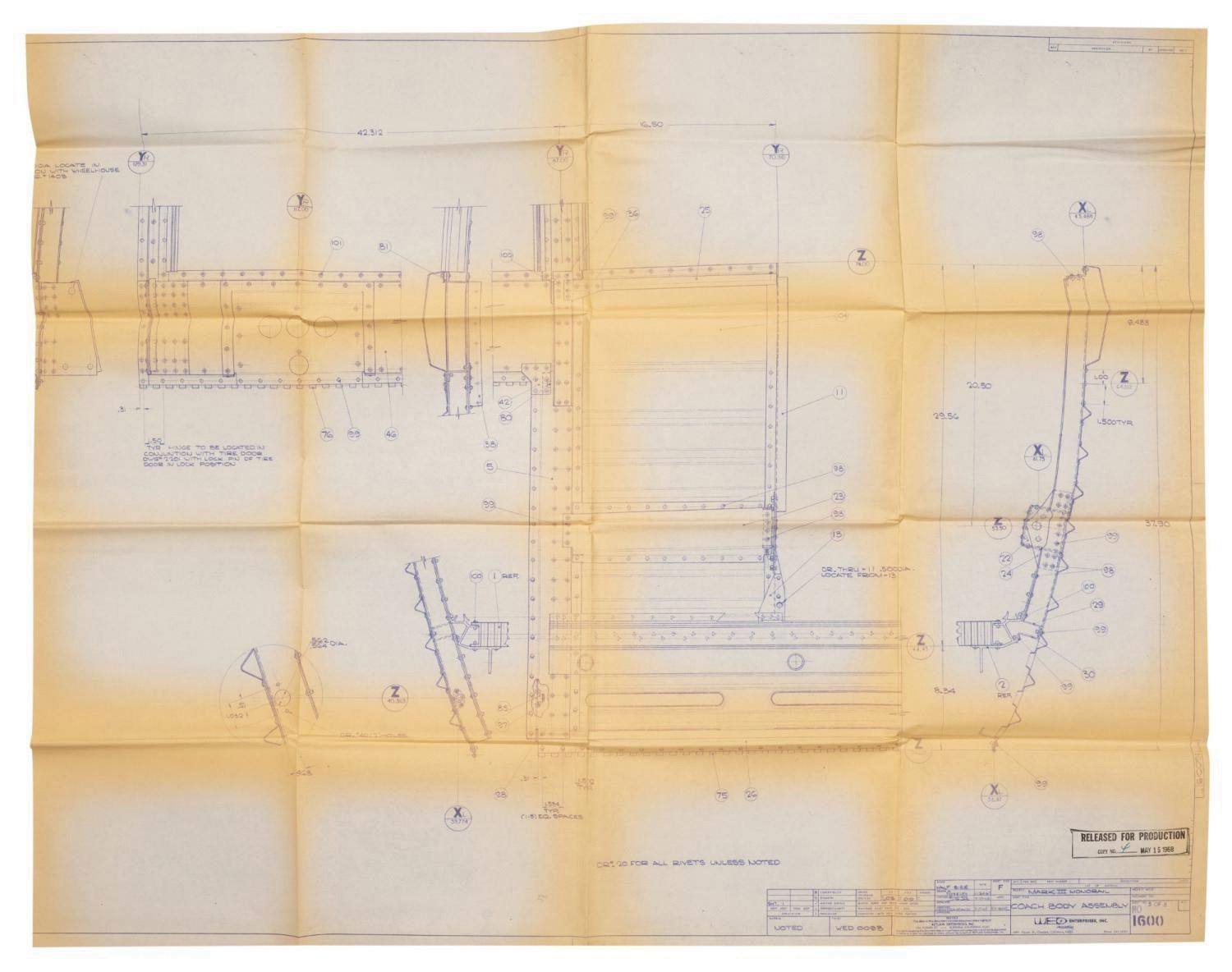

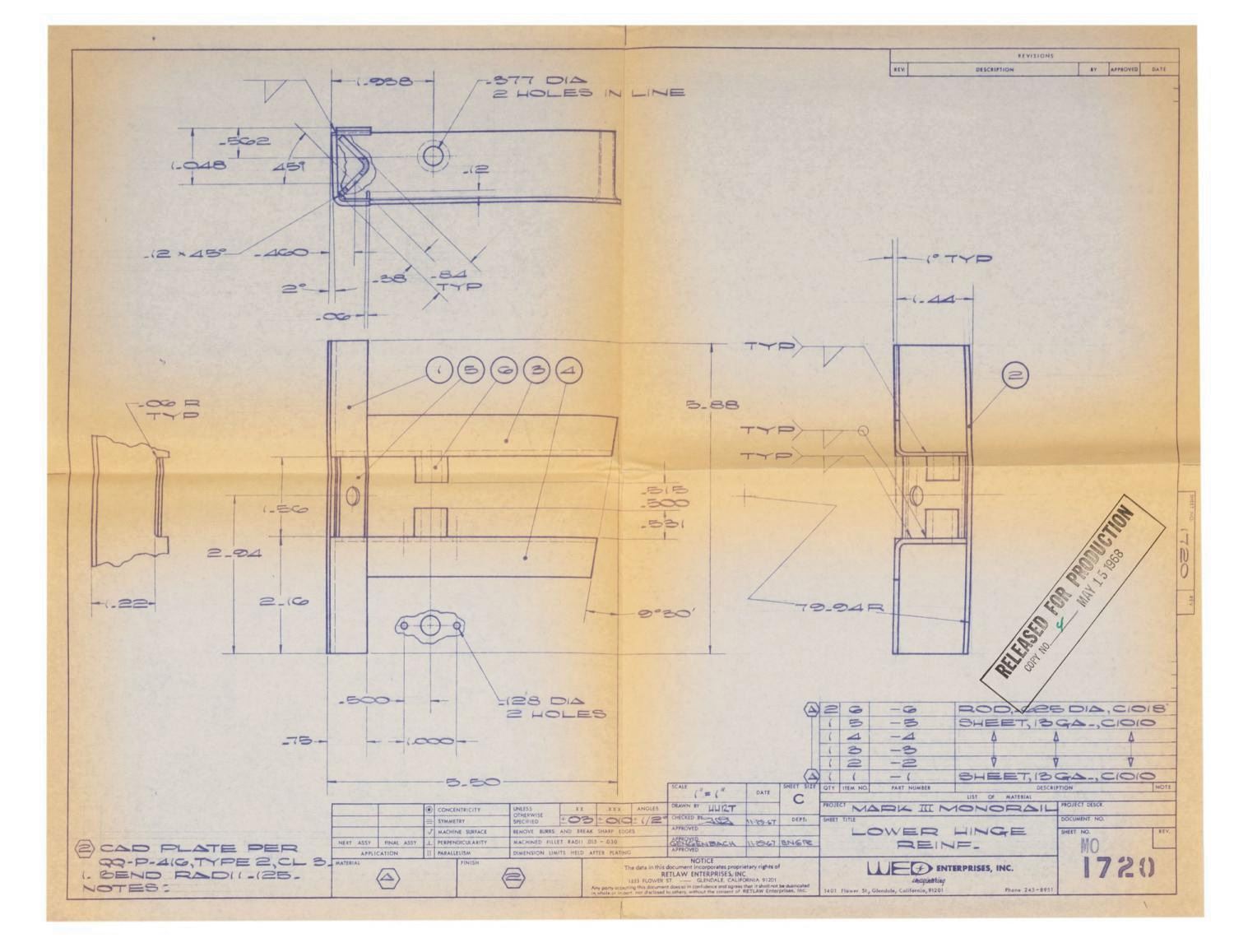

(Disneyland, c.1965-68) A collection of (41) detailed assembly renderings and electrical diagrams used in the production of the Monorail Mark III trains for Disneyland. While the initial train designs were suggested by Imagineer Bob Gurr, the parts were further researched, engineered, and manufactured by Wed Enterprises staff. The collection contains a wealth of information and production details, including electrical system diagrams, assembly and parts details of the coach and nose end components, and much more. Measuring 32"x46.25" to 11"x17" each, with some variance in size, the printed renderings display in very good condition, exhibiting mild toning and some edge and fold wear from use. Most sheets contain dated approval stamps for production.
